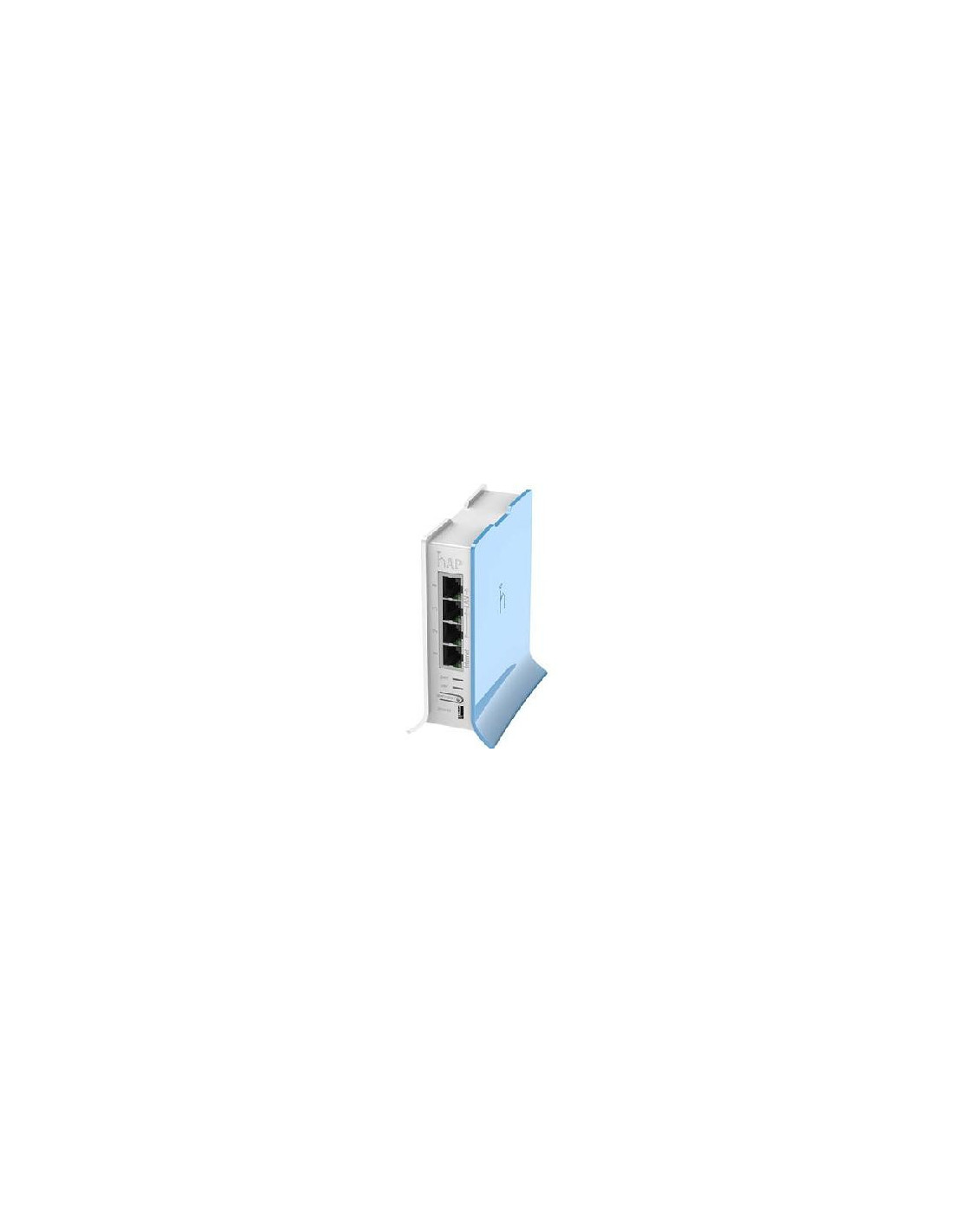

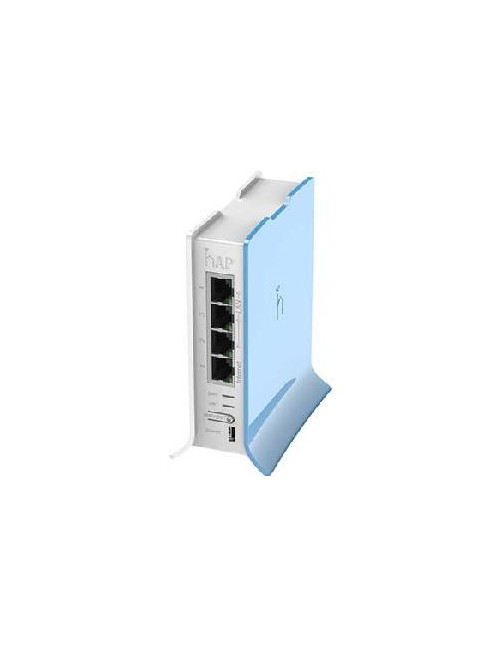

Mikrotik router board rb 941 - 2nd - tc hap

Mikrotik RB941-2nD-TC - RB/ 9412nDTC ("hAP lite")

The home Access Point lite (hAP lite) is an ideal little device for your
apartment,house or office.

It supports button triggered WPS, for the convenience of not typing a
complicated password when somebody wants to have wireless internet access,
and can also be told to change to cAP mode and join a CAPsMAN centrally
managed network by the push of a button.

Of course, the device runs RouterOS with all the features, bandwidth shaping,
firewall, user access control and many others.

The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain
2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license.

USB power supply is included.

Order code
RB941-2nD-TC

CPU
QCA9531 650MHz CPU

Memory
32MB DDR RAM

Ethernet
4x 10/100 Mbit/s Ethernet with Auto-MDI/X

Wireless cards
Onboard dual chain 2.4GHz 802.11b/g/n QCA9531 wireless module,
10kV ESD protection on each RF port, WPS support via button

Extras
Reset switch

LEDs
Power LED, 4x Ethernet LED, user LED

Power input
Packaged with 5V DC 0.7A power adapter

Dimensions
124x100x54mm

Max consumption
3W at 5V

Operating Temp
-20C .. +70C tested

OS
MikroTik RouterOS, Level 4 license (AP support)


Product code RB941-2nD-TC
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 32 MB
10/100 Ethernet ports 4
10/100/1000 Ethernet ports None
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model QCA9533-BL3A
Wireless standards 802.11b/g/n
Number of USB ports 0
Power Jack 0
PoE in No
Supported input voltage 5 V - 5 V
PoE out No
Voltage Monitor No
PCB temperature monitor No
CPU temperature monitor No
License level 4
Antenna gain DBI 1.5
Current Monitor No
CPU QCA9533-BL3A
Max Power consumption 3W
SFP ports 0
SFP+ ports 0
Number of chains 2
Serial port None
